FEATURES

Woofer

• CFRP (Carbon Fiber Reinforced Plastic) cone with spezialised rubber surround
• HAMR (High Amplitude Multi-Roll) Surround
• Large 35 mm Voice Coil
• Magnet Material: Ferrite
• Grill sold separately: KTE-S69G

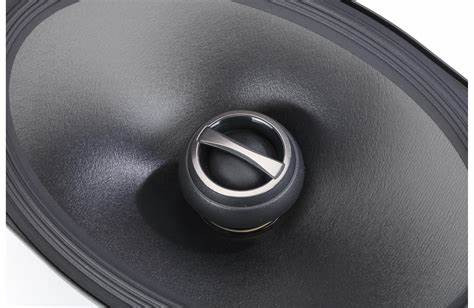

Tweeter

• Tweeter Type: 1" Wide-Range Silk Dome
• Magnet Material: Neodymium

Crossover Network

• Grade: 2nd order Network Design

SPECIFICATIONS

Power Handling

• Peak Power: 260 Watts
• RMS Power: 85 Watts (CTA-2031 Compliant)

Dimensions Woofer

• Frame 161 x 237 mm
• Mounting Depth: 74.4 mm
• Mounting Height: 7.4 mm
• Magnet: 100.0 mm

General

• Frequency Range: 65 Hz - 22 kHz
• Impedance: 4 Ohms
• Sensitivity: 90 dB/W
