کامپوننت دو مسیر پایونیر TS-Z65CH

کامپوننت دو مسیر پایونیر مدل TS-Z65CH

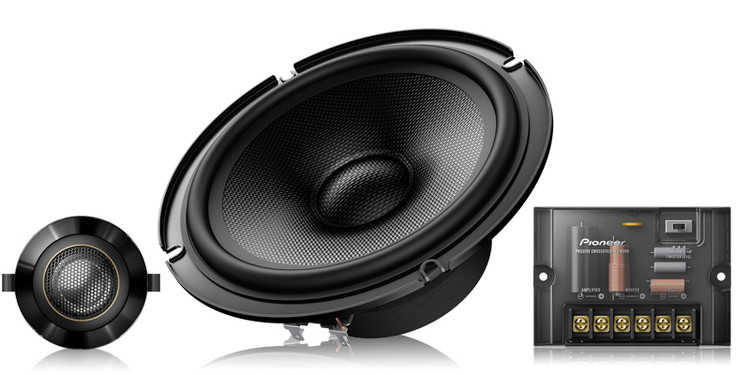

• System Type2-way Component

• Sound Pressure Level (Sensitivity)85 dB (± 1.5dB)

• Frequency Range30 Hz to 96 kHz

• Hi-Res Certfied

• Continuous Power Handling (RMS)110 Watts

• Maximum Peak Power Handling330 Watts

• Nominal Impedance4 ohms

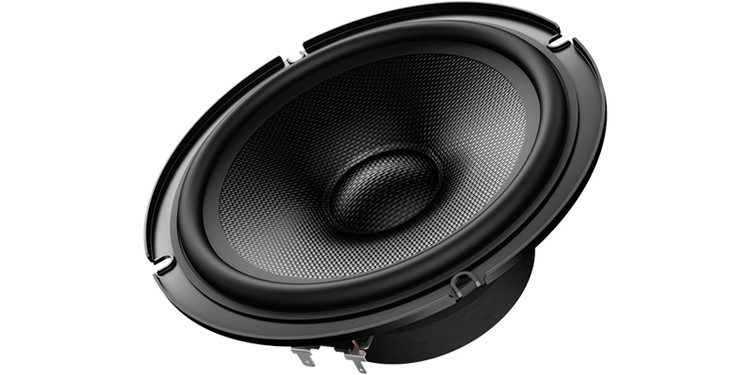

WOOFER

• Diameter6.5”

• Cone MaterialTwaron Aramid Fiber + Cellulose Fiber Dual Layer

• Center Cap MaterialTwaron Aramid Fiber

• Surround MaterialButyl Rubber

• Basket MaterialStamped Steel

• Magnet MaterialFerrite

• Magnet Weight15.2 oz

• Mounting Depth2.6”

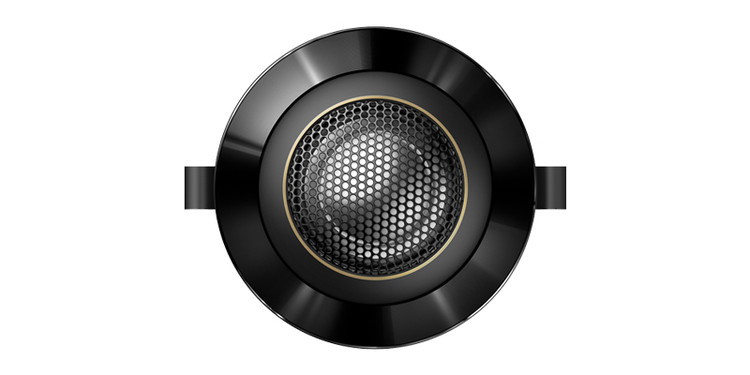

TWEETER

• TypeBalanced Dome

• Diameter29mm

• Diaphragm MaterialAluminum

• Magnet MaterialNeodymium

• Magnet Weight6.4 g

• Swivel TypeYes

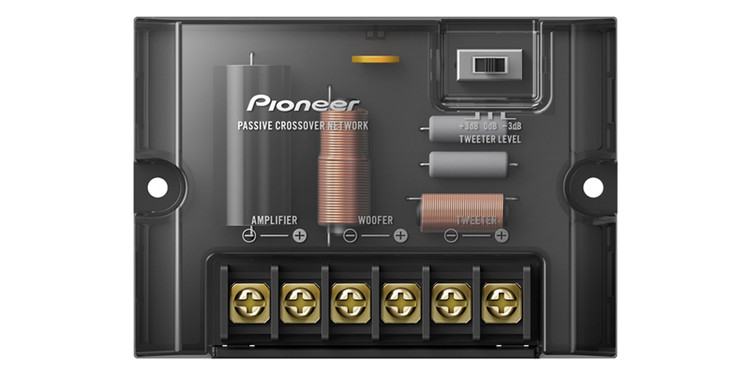

CROSSOVER NETWORK

• Tweeter Level Adjustability-3dB / 0dB / +3dB

• Crossover Frequency2000 Hz
